Pascor offers versatility and reliability in its entire line of group operated switches. Ideal for either substation or transmission applications, Pascor switches are engineered to the highest standards to meet ANSI requirements. Pascor customizes controls on each switch to suit the application.

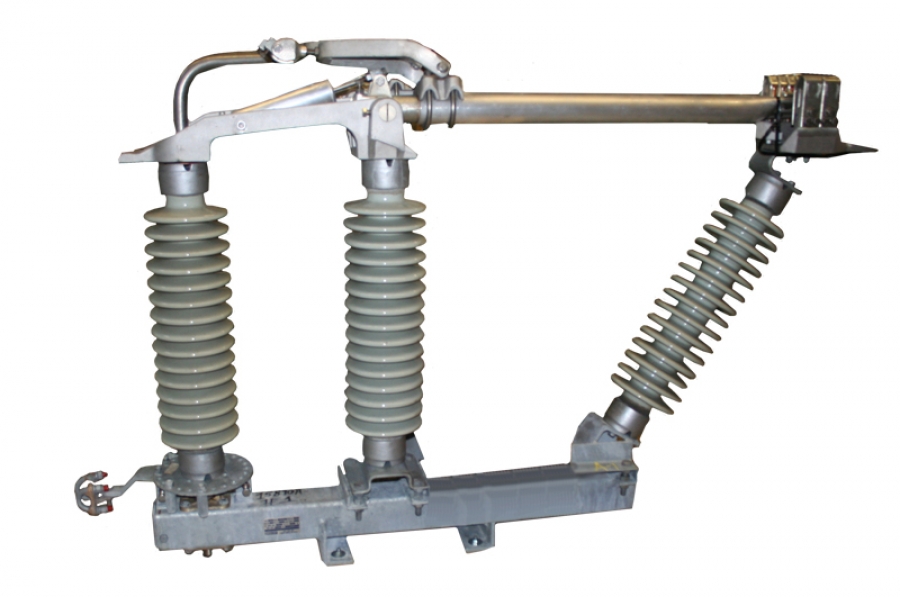

Vertical Break Slant
Download attachments:
Vertical Break Slant 1200,1600, 2000 Amp
1200, 1600, 2000 Amp VBS
Vertical Break Slant 1200, 1600, 2000 Amp
- Manufactured in either aluminum or copper
- Permits minimum phase spacing
- Stable under heavy terminal pad loading
- Most versatile for interrupter accessories
| kV
(nom) |
kV
BIL |
Amps
Continuous |
kA
Mom |
STD
INSUL |
INSUL
BC (IN) |
INSUL
HGT (IN) |
Dimensions are in Inches | ||||||
| A | B | C | D | E | F | G* | |||||||
| 69 | 350 | 1200/1600 | 61/70 | TR216 | 3 | 30 | 40 ¼ | 22 | 93 ¼ | 90¼ | 5 | 49 ⅝ | 1386 |
| 69 | 350 | 2000 | 100 | TR216 | 3 | 30 | 40 ¼ | 22 | 92 | 89 | 6 | 49 ⅝ | 1418 |
| 115 | 350 | 1200/1600 | 61/70 | TR286 | 5 | 45 | 59 | 33 11/16 | 130 | 125 ½ | 5 | 62 ⅞ | 2622 |
| 115 | 350 | 2000 | 100 | TR286 | 5 | 45 | 59 | 33 11/16 | 130 | 125 | 6 | 62 ⅞ | 2657 |
| 138 | 350 | 1200/1600 | 61/70 | TR288 | 5 | 54 | 68 | 40 ½ | 151 | 145 ¾ | 5 | 70 ½ | 2877 |
| 138 | 350 | 2000 | 100 | TR288 | 5 | 54 | 68 | 40 ½ | 149 ¾ | 145 ¾ | 6 | 70 ½ | 2914 |
| 161 | 350 | 1200/1600 | 61/70 | TR291 | 5 | 62 | 76 | 48 | 172 ½ | 166 ½ | 5 | 78 | 3720 |
| 161 | 350 | 2000 | 100 | TR291 | 5 | 62 | 76 | 48 | 172 ½ | 166 ½ | 6 | 78 | 3783 |
| 230 | 350 | 1200/1600 | 61/70 | TR304 | 5 | 80 | 94 | 49 ½ | 201 ½ | 195 | 5 | 79 ½ | 4479 |
| 230 | 350 | 2000 | 100 | TR304 | 5 | 80 | 94 | 49 ½ | 202 | 197 | 6 | 79 ½ | 4520 |
*Weights are in lbs., and include 3 phases, insulators and controls
Applications: Substation & Transmission
- Horizontal upright
- Vertical
- Underhung
- Unitized phase over phase
Standard Features:
- Silver to silver exposed contacts
- Rigid tubular blade
- 1/2″ stainless steel arcing horn
- Stainless steel live parts hardware
- Galvanized steel square tube phase
- Stainless steel ball bearings 115 kV and up
- Stainless steel shaft in bronze sleeve bearing 69 kV and below
Operator Option:
- Swing handle
- Worm gear
- Motor operator
Accessories:
- Whip type horns
- Single or multi bottle vacuum interrupters
- Ground switches
