Pascor offers versatility and reliability in its entire line of group operated switches. Ideal for either substation or transmission applications, Pascor switches are engineered to meet the highest standards to meet ANSI requirements. Pascor customizes controls on each switch to suit the application.

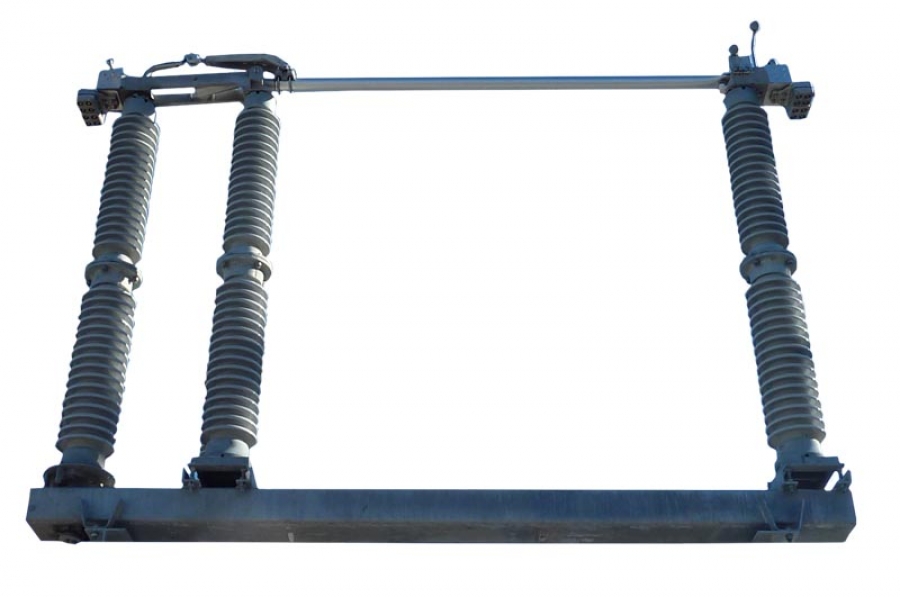

Vertical Break
Download attachments:
Vertical Break 1200/1600 Amp
Vertical Break 2000 Amp
Vertical Break 3000 Amp
Vertical Break 4000 Amp
1200/1600 Amp VBP
Vertical Break Parallel 1200/1600 Amp VBP
- Manufactured in either aluminum or copper
- Permits minimum phase spacing
- Stable under heavy termnal pad loading
- Most versatile for interrupter accessories
| kV
(nom) |
kV
BIL |
Amps
Continuous |
kA
Mom |
STD.
INSUL. |
INSUL.
BC (IN) |
INSUL
HGT (IN) |
Dimensions are in Inches | ||||||
| A | B | C | D | E | F | G* | |||||||
| 15 | 110 | 1200/1600 | 61/70 | TR205 | 3 | 10 | 20 ¼ | 15 | 46 | 44 ½ | 5 | 42 ½ | 679 |
| 23 | 150 | 1200/1600 | 61/70 | TR208 | 3 | 14 | 24 ¼ | 18 | 53 ¼ | 51 ½ | 5 | 45 ½ | 707 |
| 34.5 | 200 | 1200/1600 | 61/70 | TR211 | 3 | 18 | 28 ¼ | 24 | 63 ¼ | 61 | 5 | 51 ½ | 882 |
| 46 | 250 | 1200/1600 | 61/70 | TR214 | 3 | 22 | 32 ¼ | 30 | 73 ¼ | 70 ¾ | 5 | 57 ½ | 1086 |
| 69 | 350 | 1200/1600 | 61/70 | TR216 | 3 | 30 | 40 ¼ | 42 | 93 ¼ | 90 | 5 | 69 ½ | 1386 |
| 115 | 550 | 1200/1600 | 61/70 | TR286 | 5 | 45 | 59 | 60 | 130 | 125 ½ | 5 | 90 | 2622 |
| 138 | 650 | 1200/1600 | 61/70 | TR288 | 5 | 54 | 68 | 72 | 151 | 145 ¾ | 5 | 102 | 2877 |
| 161 | 750 | 1200/1600 | 61/70 | TR291 | 5 | 62 | 76 | 84 | 172 ½ | 166 ½ | 5 | 114 | 3150 |
| 230 | 900 | 1200/1600 | 61/70 | TR304 | 5 | 80 | 94 | 96 | 201 ½ | 195 | 5 | 126 | 4479 |
| 230 | 1050 | 1200/1600 | 61/70 | TR312 | 5 | 92 | 106 | 114 | 234 | 234 | 5 | 144 | 4514 |
*Weights are in lbs., and include 3 phases, insulators and controls.
Application: Substation & Transmission
- Horizontal upright
- Vertical
- Underhung
Standard Features:
- Silver to silver exposed contacts
- Rigid tubular blade
- 1/2″ stainless steel arcing horn
- Stainless steel live parts hardware
- Galvanized steel square tube base
- Stainless steel ball bearings 115kV and up
- Stainless steel shaft in bronze sleeve bearing 69kV and below
Operator Option:
- Swing handle
- Worm gear
- Motor operator
Accessories:
- Whip type horns
- Single or multi vacuum bottle interrupters
- Ground switches
2000 Amp VBP
Vertical Break Parallel 2000 Amp VBP
- Manufactured in either aluminum or copper
- Permits minimum phase spacing
- Stable under heavy terminal pad loading
- Most versatile for interrupter accessories
| kV
(nom) |
kV
BIL |
Amps
Continuous |
kA
Mom. |
STD.
INSUL. |
INSUL
BC (IN) |
INSUL
HGT (IN) |
Dimensions are in Inches | ||||||
| A | B | C | D | E | F | G* | |||||||
| 15 | 110 | 2000 | 100 | TR205 | 3 | 10 | 20 ¼ | 15 | 46 | 44 ½ | 6 | 42 ½ | 700 |
| 23 | 150 | 2000 | 100 | TR208 | 3 | 14 | 24 ¼ | 18 | 53 ¼ | 53 ½ | 6 | 45 ½ | 777 |
| 34.5 | 200 | 2000 | 100 | TR210 | 3 | 18 | 28 ¼ | 24 | 63 ¼ | 61 | 6 | 51 ½ | 911 |
| 46 | 250 | 2000 | 100 | TR214 | 3 | 22 | 32 ¼ | 30 | 73 ¼ | 70 ¾ | 6 | 57 ½ | 1116 |
| 69 | 350 | 2000 | 100 | TR216 | 3 | 30 | 40 ¼ | 42 | 93 ¼ | 90 | 6 | 69 ½ | 1416 |
| 115 | 550 | 2000 | 100 | TR286 | 5 | 45 | 59 | 60 | 130 | 125 ½ | 6 | 90 | 2657 |
| 138 | 650 | 2000 | 100 | TR288 | 5 | 54 | 68 | 72 | 151 | 145 ¾ | 6 | 102 | 2914 |
| 161 | 750 | 2000 | 100 | TR291 | 5 | 62 | 76 | 84 | 172 ½ | 166 ½ | 6 | 114 | 3189 |
| 230 | 900 | 2000 | 100 | TR304 | 5 | 80 | 94 | 96 | 201 ½ | 195 | 6 | 126 | 4520 |
| 230 | 1050 | 2000 | 100 | TR312 | 5 | 92 | 106 | 114 | 234 | N/A | 6 | 144 | 4660 |
| 345 | 1050 | 2000 | 100 | TR316 | 5 | 92 | 106 | 114 | 234 ½ | N/A | 6½ | 144 | 5245 |
| 345 | 1300 | 2000 | 100 | TR324 | 5/7 | 106 | 120 | 132 | 267 | N/A | 6½ | 168 | 5360 |
*Weights are in lbs., and include 3 phases, insulators and controls.
Application: Substation & Transmission
- Horizontal upright
- Vertical
- Underhung
Standard Features:
- Silver to silver exposed contacts
- Rigid tubular blade
- 1/2″ stainless steel arcing horn
- Stainless steel live parts hardware
- Galvanized steel square tube base
- Stainless steel ball bearings 115 kV and up
- Stainless steel shaft in bronze sleeve bearing 69 kV and below
Operator Option:
- Swing handle
- Worm gear
- Motor operator
Accessories:
- Whip type horns
- Single or multi vacuum bottle interrupters
- Ground switches
3000 Amp VBP
Vertical Break Parallel 3000 Amp VBP
- Manufactured in either aluminum or copper
- Permits minimum phase spacing
- Stable under heavy terminal pad loading
- Most versatile for interrupter accessories
| kV
(nom) |
kV
BIL |
Amps
Continuous |
kA
Mom. |
STD.
INSUL |
INSUL
BC (IN) |
INSUL
HGT (IN) |
Dimensions are in Inches | |||||
| A | B | C | D | E | F* | |||||||
| 15 | 110 | 3000 | 120 | TR205 | 3 | 10 | 20¼ | 15 | 48 | 46½ | 51½ | 750 |
| 23 | 150 | 3000 | 120 | TR208 | 3 | 14 | 24¼ | 18 | 52 | 50½ | 51½ | 822 |
| 34.5 | 200 | 3000 | 120 | TR210 | 3 | 18 | 28¼ | 24 | 62 | 60 | 57½ | 938 |
| 46 | 250 | 3000 | 120 | TR214 | 3 | 22 | 32¼ | 30 | 72 | 70 | 63½ | 1171 |
| 69 | 350 | 3000 | 120 | TR216 | 3 | 30 | 40¼ | 42 | 92 | 89 | 75½ | 1515 |
| 115 | 550 | 3000 | 120 | TR286 | 5 | 45 | 59 | 60 | 128½ | 124½ | 96 | 2722 |
| 138 | 650 | 3000 | 120 | TR288 | 5 | 54 | 68 | 72 | 149½ | 144¾ | 108 | 3001 |
| 161 | 750 | 3000 | 120 | TR291 | 5 | 62 | 76 | 84 | 171½ | 167¼ | 120 | 3224 |
| 230 | 900 | 3000 | 120 | TR304 | 5 | 80 | 94 | 96 | 201½ | 195¼ | 132 | 4563 |
| 230 | 1050 | 3000 | 120 | TR312 | 5 | 92 | 106 | 114 | 231½ | 225¾ | 150 | 4701 |
| 345 | 1050 | 3000 | 120 | TR316 | 5 | 92 | 106 | 114 | 234½ | N/A | 150 | 5330 |
| 345 | 1300 | 3000 | 120 | TR324 | 5/7 | 106 | 120 | 132 | 267 | N/A | 168½ | 5553 |
*Weights are in lbs., and include 3 phases, insulators and controls
Application: Substation & Transmission
- Horizontal upright
- Vertical
- Underhung
Standard Features:
- Silver to silver exposed contacts
- Rigid tubular blade
- 1/2″ stainless steel arcing horn
- Stainless steel live parts hardware
- Galvanized steel square tube base
- Stainless steel ball bearings 115 kV and up
- Stainless steel shaft in bronze sleeve bearing 69 kV and below
Opeartor Option:
- Swing handle
- Worm gear
- Motor operator
Accessories:
- Whip type horns
- Single or multi vacuum bottle interrupters
- Ground switches
4000 Amp VBP
Vertical Break Parallel 4000 Amp VBP
- Manufactured in either aluminum or copper
- Permits minimum phase spacing
- Stable under heavy terminal pad loading
- Most versatile for interrupter accessories
| kV
(nom) |
kV
BIL |
Amps
Continuous |
kA
Mom. |
STD
INSUL |
INSUL
BC (IN) |
INSUL
HGT (IN) |
Dimensions are in Inches | |||||
| A | B | C | D | E | F* | |||||||
| 23 | 150 | 4000 | 120 | TR208 | 3 | 14 | 31⅞ | 21 | 57¼ | 55¼ | 54½ | 1055 |
| 23 | 150 | 4000 | 120 | TR227 | 5 | 15 | 36½ | 21 | 62 | 60⅜ | 57 | 1375 |
| 34.5 | 200 | 4000 | 120 | TR210 | 3 | 18 | 35⅞ | 27 | 67¼ | 65¼ | 60½ | 1168 |
| 34.5 | 200 | 4000 | 120 | TR231 | 5 | 20 | 41½ | 27 | 72⅞ | 70⅞ | 63 | 1643 |
| 46 | 240 | 4000 | 120 | TR214 | 3 | 22 | 31¾ | 33 | 77 | 74⅝ | 66½ | 1270 |
| 46 | 240 | 4000 | 120 | TR267 | 5 | 24 | 45½ | 33 | 83 | 80½ | 69 | 1770 |
| 69 | 350 | 4000 | 120 | TR216 | 3 | 30 | 47⅞ | 45 | 97 | 85 | 78½ | 1639 |
| 69 | 350 | 4000 | 120 | TR278 | 5 | 30 | 51½ | 45 | 101 | 97⅞ | 81 | 2071 |
| 115 | 550 | 4000 | 120 | TR286 | 5 | 45 | 66½ | 60 | 131½ | 127½ | 96 | 2459 |
| 138 | 650 | 4000 | 120 | TR288 | 5 | 54 | 75½ | 72 | 152½ | 147¾ | 108 | 2630 |
| 161 | 750 | 4000 | 120 | TR291 | 5 | 62 | 83½ | 84 | 172⅞ | 167⅞ | 120 | 2954 |
| 230 | 900 | 4000 | 120 | TR308 | 5 | 80 | 101½ | 96 | 202⅞ | 197 | 132 | 3697 |
| 230 | 1050 | 4000 | 120 | TR312 | 5 | 92 | 113½ | 114 | 232¾ | 226 | 150 | 4165 |
| 345 | 1300 | 4000 | 120 | TR324 | 5 | 106 | 126⅞ | 132 | 263¾ | 256 | 168¾ | 6207 |
*Weights are in lbs., and includes 3 phases, insulators and controls
*Based on aluminum switch desgin
Application: Substation & Transmission
- Horizontal upright
- Vertical mounting
- Underhung mounting
Standard Features:
- Silver to silver exposed contacts
- Rigid tubular blade
- 1/2″ stainless steel arcing horn
- Stainless steel live parts hardware
- Galvanized steel square tube base
- Stainless steel ball bearings 115 kV and up
- Stainless steel shaft in bronze sleeve bearing 69 kV and below
Opeartor Option
- Swing handle
- Worm gear
- Motor operator
Accessories:
- Whip type horns
- Single or multi vacuum bottle interrupters
- Ground switches
