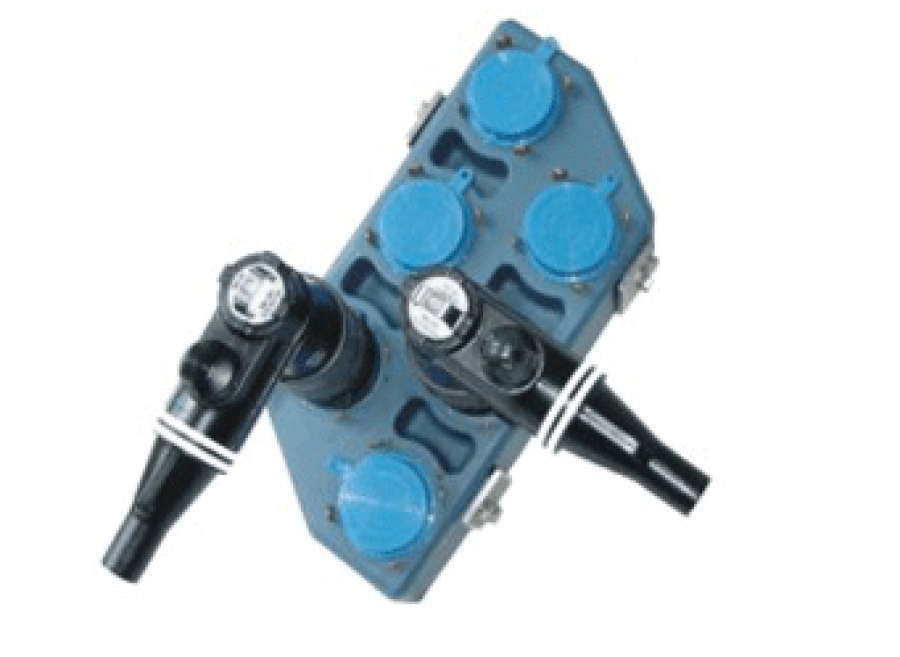

Patton & Cooke Co’s Stacked Style Junction Bar provides cable connections beyond the conventional 4 point junction. It also reduces space requirement for installations with limited clearance. Available in a multitude of configurations rated up to 25kV.
Stacked
Download attachments:
Junction Bars PDF
Catalogue

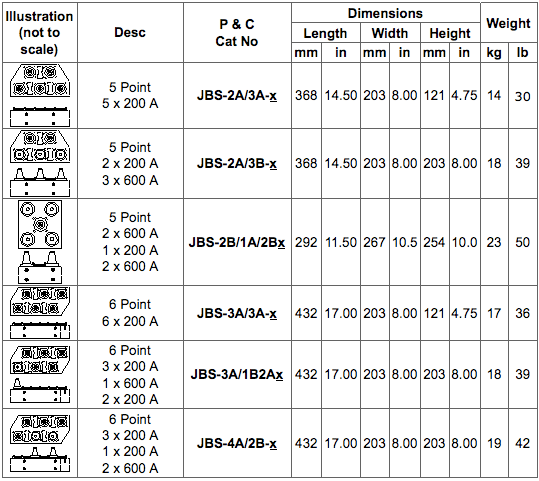

Stacked Style Junction Bars
SELECTION REMINDERS:
- Standard ratings for all junction bars:
- Voltage: to 35 kV
- Impulse Voltage: to 150 kV BIL
- Corona Extinction: to 26 kV
- All junction bars are standard equipped with protective covers and mounting brackets. Parking stands are optional.
- Many combinations of 200/600/900 Amp junction bars are available
ORDERING PROCEDURE:
- Determine the following:
- Maximum voltage, kV.
- Current Rating, Amp.
- Number of positions required for installation.
- Select catalogue number of junction bar
- Provide the maximum voltage, kV and substitute its corresponding extinction value for x in the catalogue number.
- Specify if mounting brackets or parking stands are required
Example 1:
15 kV (corona extinction = 15 kV), 5 point, 2×200 Amp and 3×600 Amp
Catalogue Number JBS-2A/3B-15
