Skids

Download attachments:
Skids PDF
Heavy Duty Rollover Skid

Skid mounted couplers are a well-proven and cost effective method for extending the service life of couplers and cable. Protect your personnel and equipment by making couplers and cable more visible.

Patton & Cooke skids are available in standard and custom configurations to meet your needs. Couplers can be mounted directly to the skid with an operational mounting plate. Skids can also be used with junction boxes and splitter boxes. Additional features including indicator lights for high visibility are also available.

Standard

Skids

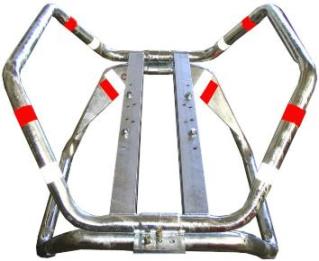

Model #: STA-021A
Style: Rollover type
Material: Galvanized Steel Tube
Weight: 105 lbs. / 48 kg.
Dimensions: 50″L x 47″W x 29″H
The standard skid is ideal for use in hard and soft rock mining environments. Also offers rollover protection to mounted devices, and elevates devices above mine floor.

Recommended Applications:

Couplers: 600/1000V, 5kV, 8kV PK and C80 series, 15kV, 25kV Compact Version
Junction Boxes
Splitter Boxes

Adapter Plate for coupler mounting may be required – contact factory.

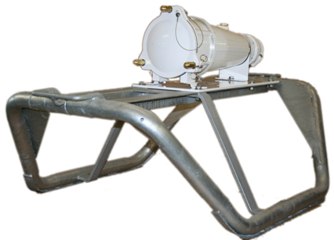

Model #: STA-026
Style: Upright
Material: Galvanized Steel Tube
Weight: 50lbs. / 23 kg.
Dimensions: 50″L x 47″W x 14″H

The standard skid is ideal for use in hard and soft rock mining environments. Elevates devices above mine floor.

Recommended Applications:

Couplers: 600/1000V, 5kV, 8kV PK and C80 series, 15kV, 25kV Compact Version
Junction Boxes
Splitter Boxes

Adapter Plate for coupler mounting may be required – contact factory.

Heavy Duty

Skids

Heavy Duty Skid

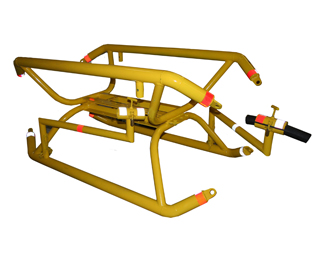

Model #: STA-035
Style: Rollover
Material: Full welded heavy duty steel pipe
Weight: 420 lbs (190 kg)
Dimensions: 86″L x 41″W x 48″H (each strain arm extends an additional 14″ past the skid end)
Finish: Painted (including high visibility reflective tape)

Recommended Applications:

Leg Mounted Couplers: 600/1100 V, 5 kV, 8kV PK and C80 Series, 15 kV, 25 kV
Junction Boxes
Splitter Boxes
Adapter plate for coupler mounting may be required – contact factory
Series-specific coupler saddle available for quick attachment of trailing cable coupler

Stone Boats

Skids

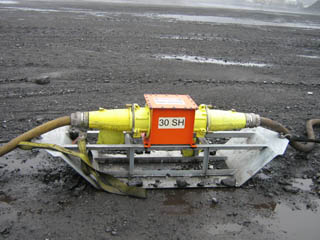

Stone Boat Skid

Model #:
STA-015B
Style: Sled
Material: Galvanized Mild Steel Plate
Weight: 253.53 lbs./115 kg.
Dimensions: 91 1/2″L x 28″W x 12″H

Recommended Applications:

Couplers: 600/1000V, 5kV, 8kV PK and C80 series, 15kV, 25kV Compact Version
Junction Boxes
Splitter Boxes

Adapter Plate for coupler mounting may be required – contact factory.

Options

Skids

For custom skid designs or alternate configurations, please contact the factory.

Model #:

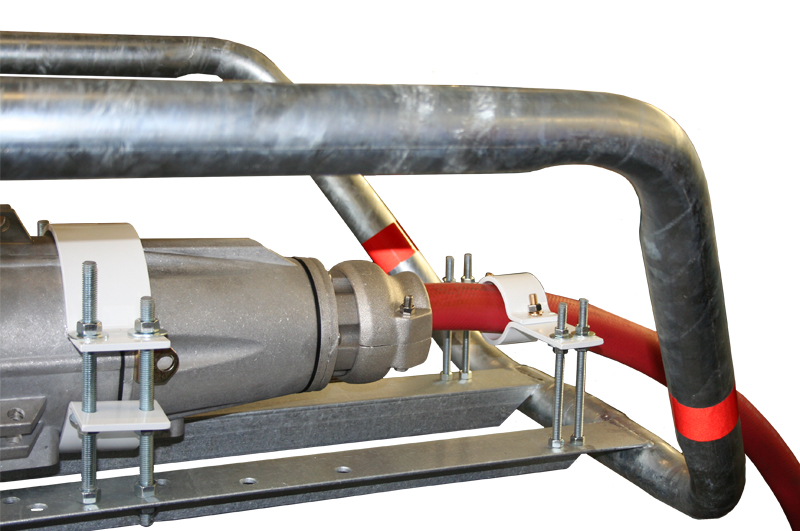

C80C3063

Style: Cable and Coupler Saddle

Material: Powder Coated Steel

Weight: 15 lbs (6.8 kgs)

Recommended Application: C80 Series Couplers

Accessible mounting hardware for ease of coupler attachment. Light weight, high strength coupler support. Adaptable for mounting on other skids or equipment. Contact factory for other series couplers moutning devices.

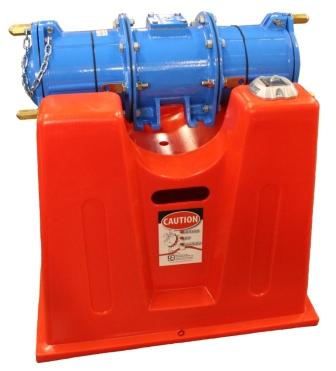

An alternative to the skid is the new Patton & Cooke Device Off Ground.
