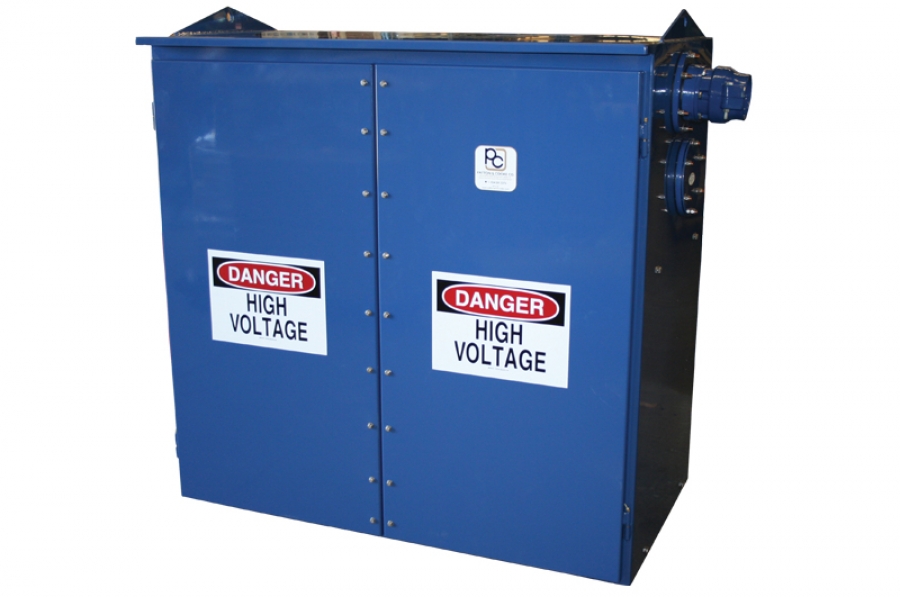

Patton & Cooke’s custom enclosures are built to suit your needs. Whether for fixed and portable application, Patton & Cooke enclosures are built to meet our high standards and your specifications. The enclosures can be supplied for indoor or outdoor locations and for underground use in mining applications. Enclosure designs are available up to 35 kV with a range of options.
Custom Enclosures
Design Capabilities
Custom Enclosures
All enclosures are fitted with:
- External grounding points
- Convenient lifting points for ease of handling
- Padlocking capabilities
Material Options:
- Nema 4/mild steel
- Nema 4x/stainless steel
Style:
- Free standing
- Pad mount
- Skid mount
- Wall mount
Interior Options:
- Standoff insulators
- Copper bus
- Cam clamps or compression lugs
- Copper grounding points
- Separable insulated connection junctions
Exterior Options:
- Viewing window
- Power on indictors
- Entrance fittings/glands
- Single or three phase cable couplers
Finish:
- Powder coated finish in a wide frange of colour options
- High voltage warning labels
Production Capabilities
Custom Enclosures
Our state of the art manufacturing facility has the following:
The Plant
- Building covers 476,000 sq/ft (11 acres under one roof)
- 18,500 sq/ft devoted to R&D and Engineering
- 20,000 sq/ft devoted to administrative office space
- 100,000 sq/ft devoted to finished goods warehouse
The Equipment
-
- 14 turret punch presses
- 24 press brakes
- 4 lasers
- 4 shears
- 1 plasma cutter
- 70 welding machines in fully ventilated enclosures
- 1 robotic welder
- 13 paint booths (10 line booths and 3 conveyor line parts booths)
The Material
- 4,000,000 pounds of castings per year
- 13,500+ tons (27,000,000 lbs) of steel used per year
- 100,000 pieces of glass per year
- 30 lbs of gold for plating per year
For more information on Custom Enclosures, please contact:
Patton & Cooke Co.
