600/1100 Volt Cable Couplers

Download attachments:
600/1100V P&C Coupler Data Sheet

We had our customers in mind when we designed our twist lock style 600/1100 Volt cable couplers. Our C10 Series couplers are designed to mate with competitors products without any field modifications. This allows the upgrade to Patton & Cooke quality, without the conversion cost normally associated with a full scale replacement program.

C10 Series Couplers: Features & Benefits

With full compatibility, you can integrate to realize the savings. Just check out our exclusive features and you’ll agree that this coupler has truly been designed with the customer in mind.

Design Standard:

The C10 Series coupler is designed to meet or exceed the specifications of CSA 22.2 No. 182 / UL 1682.

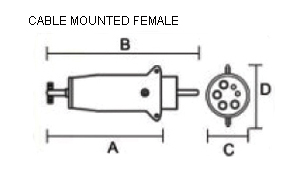

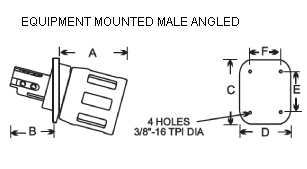

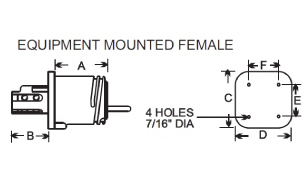

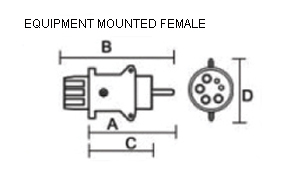

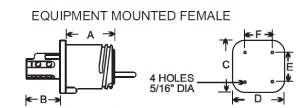

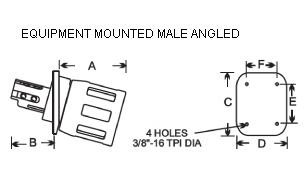

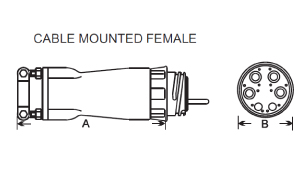

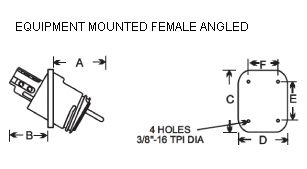

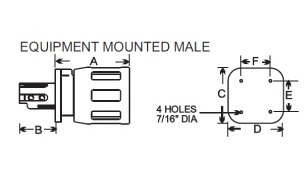

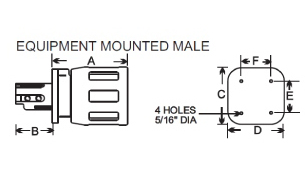

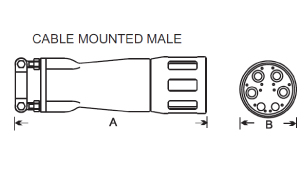

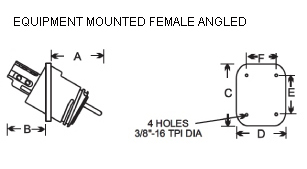

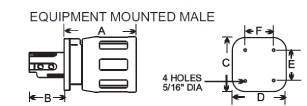

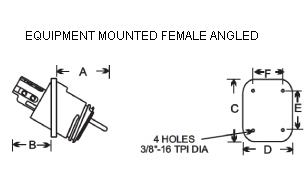

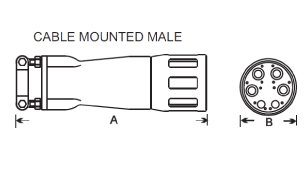

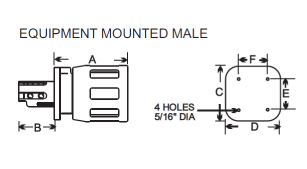

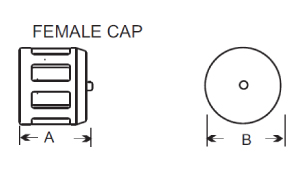

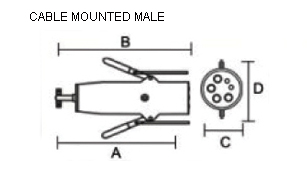

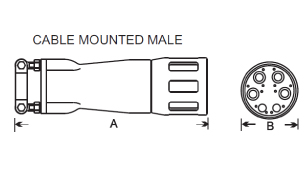

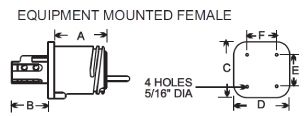

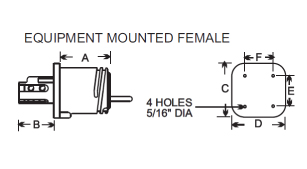

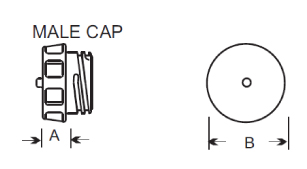

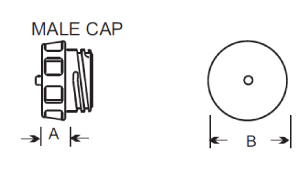

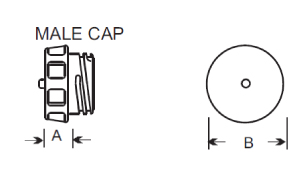

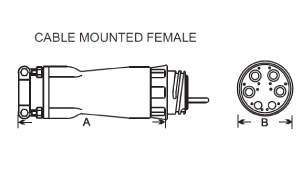

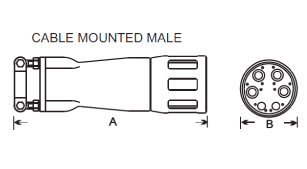

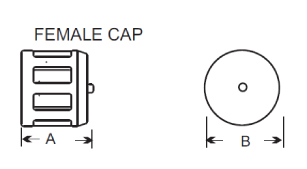

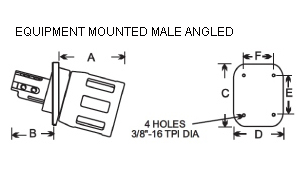

Catalogue No.	Cap Material	A	B	Weight
CA-017	Aluminum	4 1/8″	4 1/4″	2.50 lb
105 mm	108 mm	1.14 kg
CA-018	Rubber	4 1/8″	4 1/4″	2.00 lb
105 mm	108 mm	0.91 kg

Catalogue No.	Cap Material	A	B	Weight
CA-020	Rubber	4″	4 9/16″	2.10 lb
102 mm	116 mm	0.95 kg

Catalogue No.	Cap Material	A	B	Weight
CA-012	Aluminum	3 3/8″	5″	2.00 lb
111 mm	127 mm	0.91 kg
CA-014	Rubber	3 3/8″	5″	3.00 lb
111 mm	127 mm	1.36 kg

Catalogue No.	Cap Material	A	B	Weight
CA-022	Rubber	6″	7 1/2″	5.50 lb
152 mm	191 mm	2.50 kg

Options

600/1100 Volt Cable Couplers
AVAILABLE OPTIONS:

Entrance Fitting Kits (1 required for each cable mount coupler)
Epoxy Powder Coating
Junction box
Splitter box
Skid

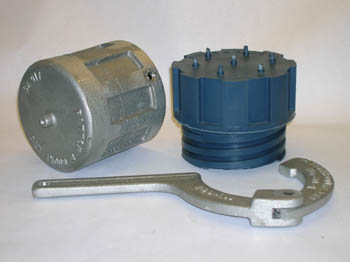

Coupling / Decoupling Tool
Covers (rubber or aluminum)

ENTRANCE FITTING KITS FOR C10B and C10C SERIES COUPLERS:

TABLE A: ENTRANCE FITTING KITS FOR CABLE MOUNTED COUPLERS
Each entrance fitting kit comprises 2 CL-112-* clamps and 1 GA-R032-* gasket

Outside Cable Diameter		Patton and Cooke Catalogue No.	Outside Cable Diameter		Patton and Cooke Catalogue No.
20.8-22.1 mm	0.82-0.87 in	C10C3019-A	32.0-34.8 mm	1.26-1.37 in	C10C3019-G
22.3-23.9 mm	0.88-0.94 in	C10C3019-B	35.1-38.1 mm	1.38-1.50 in	C10C3019-H
24.1-25.7 mm	0.95-1.01 in	C10C3019-C	38.4-41.1 mm	1.51-1.62 in	C10C3019-J
25.9-26.7 mm	1.02-1.05 in	C10C3019-D	41.4-44.5 mm	1.63-1.75 in	C10C3019-K
26.9-28.4 mm	1.06-1.12 in	C10C3019-E	44.7-47.5 mm	1.76-1.87 in	C10C3019-L
28.7-31.8 mm	1.13-1.25 in	C10C3019-F	47.8-51.8 mm	1.88-2.04 in	C10C3019-M

ENTRANCE FITTING KITS FOR C10D SERIES COUPLERS:

TABLE B: ENTRANCE FITTING KITS FOR CABLE MOUNTED COUPLERS
Each entrance fitting kit comprises 2 CL-113-* clamps and 1 GA-R216-* gasket.

Outside Cable Diameter		Patton and Cooke Catalogue No.	Outside Cable Diameter		Patton and Cooke Catalogue No.
38.4-41.1 mm	1.51-1.62 in	C10D3003-J	50.9-54.0 mm	2.01-2.13 in	C10D3003-N
41.4-44.5 mm	1.63-1.75 in	C10D3003-K	54.4-57.2 mm	2.14-2.25 in	C10D3003-P
44.7-47.5 mm	1.76-1.87 in	C10D3003-L	57.4-60.5 mm	2.26-2.38 in	C10D3003-Q
47.8-50.8 mm	1.88-2.00 in	C10D3003-M	—–	—–	—–

EPOXY POWDER COATING COLORS

Benefits: corrosion resistance, visual identification

Epoxy Powder coating provides a strong and corrosion resistant finish to aluminum coupler bodies and castings. While Patton & Cooke use alloys with the highest possible corrosion resistance, for corrosive environments such as heap leaching, marine, or underground mines with acidic conditions, Patton & Cooke recommend an epoxy powder coated finish to maximize the life of the project. Powder coating is also an effective visual indicator of coupler gender. To help reduce cable laying errors, a basic color coding scheme can help mine personnel easily and identify male and female couplers. Standard colors are shown below, custom colors are available upon request.

JUNCTION BOX:

Why Use Junction Boxes:

Incorporating a plug to plug cable arrangement is the major advantage that can be gained with a junction box. For larger cables in particular, it can take considerable time and energy to add or remove a length of cable from a mining production environment. With a plug to plug arrangement, the cable can be laid out in either direction as the connector is the same on both ends. Traditional jumper cable arrangements are plug to receptacle, like common household extension cords, and so it is possible to lay out a cable “incorrectly” with this arrangement.

Click here for more information on junction boxes

Skid Mounted Junction

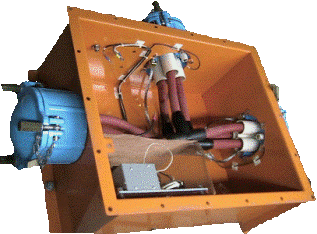

SPLITTER BOX:

Why Use Splitter Boxes:

Splitter boxes are the ideal solution for reducing cable requirements in production areas. Splitter boxes enable 2 or more pieces of equipment to draw power from 1 cable feed. Splitter boxes have a wide range of options including indicator lights and ground wire monitoring. If equipped with optional live end covers, it is possible to energize the splitter box with one or more unused outlets.

Click here for more information on splitter boxes

Skid Mounted Splitter Box

SKIDS

Why Use Skids:

The use of skids with couplers can help to dramatically extend the life of cable and couplers by keeping them off the ground, and increasing their visibility to personnel and mobile equipment. For personnel, increased visibility means a safer work environment; and for equipment, it means less downtime.

Patton & Cooke couplers are designed to ensure a long working life if they are left on the ground, however skid mounting couplers will provide added protection for the cable and couplers. And as the real cost of coupler ownership includes installation, maintenance, and materials, extending the life of couplers will help to reduce these costs as well.

Extending the life of couplers means less maintenance and more machine uptime!

Click here for more information on skids

Skid
