In designing a trailing cable coupler for 25 kV operation, Patton & Cooke determined that the coupler had to operate efficiently at this high voltage while still being maneuverable in the field.
First a new idea, then a new product evolved; the 25 kV Cable Coupler & Coupling System. The system incorporates trailing cable couplers, support skids with hoisting mechanism, accessories, and tools. All the equipment necessary for a complete and manageable 25 kV, 650 Amp cable connection.

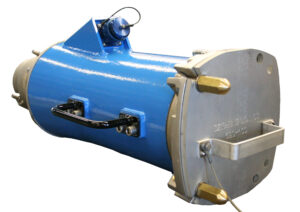

25 kV Cable Couplers

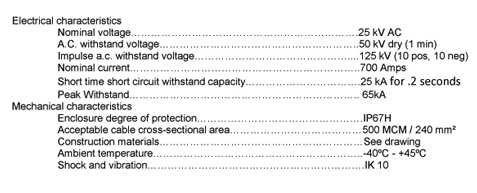

25kV CLASS ELECTRICAL TEST DATA
C250 Series Applications:
C250 Series Specifications:
STANDARD CONTACT ARRANGEMENT:
650 Amp Contact Structure: 3 Power + 1 Ground + 1 Pilot
Coupler Dimensions
| Weight | Length | Width | Height |
| 50 lbs | 25″ (with standard cable gland) | 9.5″ | 10″ |
| 22.7 kg | 635 mm | 241 mm | 254 mm |
Louvered Contact Banding
Slip on Stress Cone Termination Module
25 kV Cable Couplers
Termination Kits
| Patton & Cooke Cat. No. | Cable Conductor Size | Diameter Range | Diameter Range After Recovery |
| 11Y25-1-000 | #1 through 3/0 AWG | Insulation Tube | Insulation Tube |
| Black Semi Con Tube | Black Semi Con Tube | ||
| 11Y25-0000-500 | 4/0 through 500 MCM | Insulation Tube | Insulation Tube |
| Black Semi Con Tube | Black Semi Con Tube | ||
| 11Y25-500-1000 | 500 through 1000 MCM | Insulation Tube | Insulation Tube |
| Black Semi Con Tube | Black Semi Con Tube |

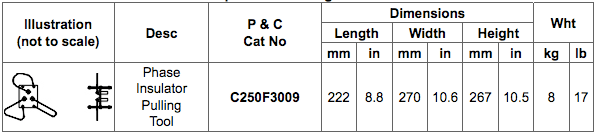

Coupler Tool

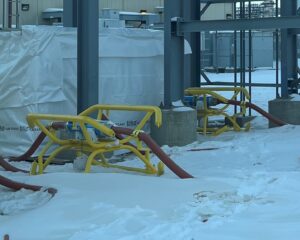

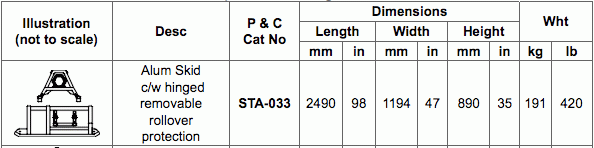

Skid
Coupler Covers
Description

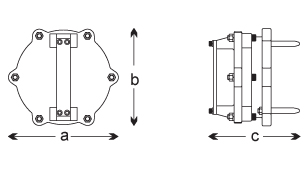

| Description | A | B | C | Weight |
| Cover Aluminum cast equipped with handle | 279 mm | 279 mm | 178 mm | 8 kg |
| 11″ | 11″ | 7″ | 18 lb |

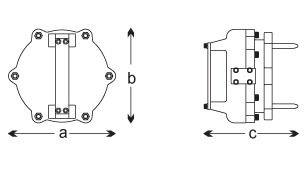

| Description | A | B | C | Weight |
| Live end cover. Aluminum cast equipped with diode and handle | 279 mm | 279 mm | 191 mm | 15 kg |
| 11″ | 11″ | 7.5″ | 33 lb |
25 kV Cable Couplers
EPOXY POWDER COATING
Benefits: corrosion resistance, visual identification
Epoxy Powder coating provides a strong and corrosion resistant finish to aluminum coupler bodies and castings. While Patton & Cooke use alloys with the highest possible corrosion resistance, for corrosive environments such as heap leaching, marine, or underground mines with acidic conditions, Patton & Cooke recommend an epoxy powder coated finish to maximize the life of the project. Powder coating is also an effective visual indicator of coupler gender. To help reduce cable laying errors, a basic color coding scheme can help mine personnel easily and identify male and female couplers. Standard colors are shown below, custom colors are available upon request.
FIBER OPTICS
Coupler Features:
Fiber Features:
| Electrical Characteristics | |
| Nominal voltage | 25 kV AC |
| a.c. withstand voltage | 50 kV dry (1 min) |
| Impulse a.c. withstand voltage | 125 kV (10 pos, 10 neg) |
| Partial discharge (for high-voltage equipment) | 100pC @21.5 kV |
| Nominal current | 400 Amps |
| Short time short-circuit withstand capacity | 13.5 kA for .2 sec |
| Peak withstand | 28.5 kA |
| Mechanical Characteristics | |
| Enclosure degree of protections | IP66H |
| Acceptable cable cross-sectional area | 250 MCM/120 mm max. |
| Construction materials | Aluminum |
| Ambient temperature | -40°C to +45°C |
| Shock and vibration | IK10 |
For more information on 25 kV Cable Couplers, please contact:
